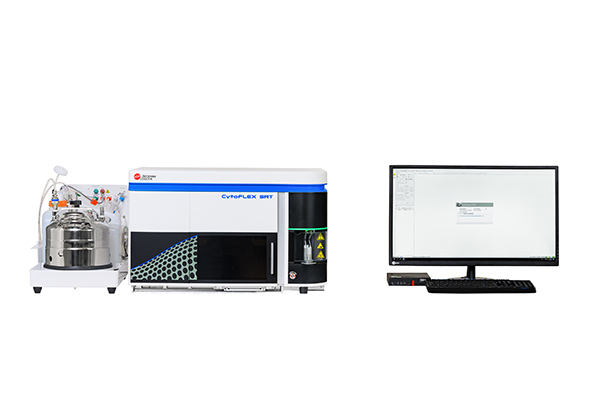

Características do CytoFLEX SRT

Explore CytoFLEX SRT Models

Especificações do Cell Sorter para bancada CytoFLEX SRT

Signal Processing Digital system with 7-decade display
Resolution 300 nm particles (488 nm SSC), 200 nm particles (405 nm VSSC), rCV 3%
Performance <30 MESF for FITC, <10 MESF for PE, <25 MESF for APC
Detection Avalanche Photodiodes
Lasers 488 nm, 638 nm
Optical Filters 450/45, 525/40 (2), 585/42, 610/20 (2), 660/10 (2), 675/30, 690/50, 710/50, 712/25, 780/60 (3)
Sorting Performance With a target population of 5% and a threshold rate of <10,000 events per second, >99% purity and >80% of Poisson's expected yield
Nozzle Diameter(s) 100 µm
Drop Dive Frequency Automatically set, manually adjustable between 30,000-35,000 Hz
Collection Vessels 12x75 mm tubes, 15 mL conical tubes, 96-well plates, 96-deep-well plates, 384-well plates, slides
Sorting Modes 4-way Sorting; enrichment or purity or single, ability to catch aborts
Power Requirements 100-240 VAC, 50/60 Hz
Item Specifications Referenced C71889

Documentos Técnicos
