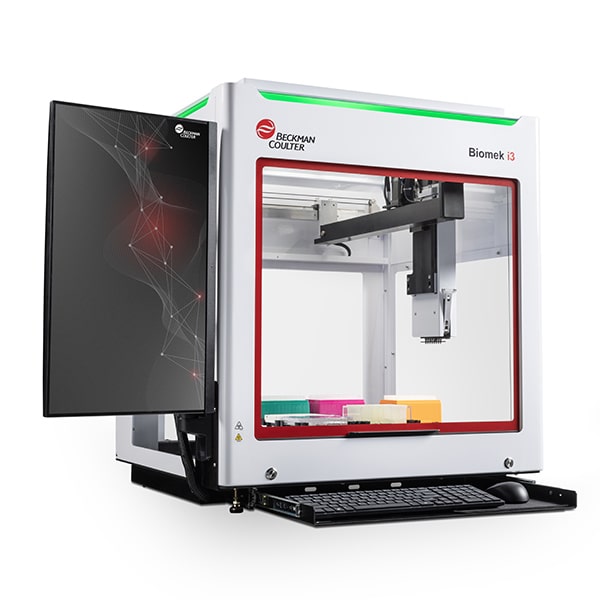

Biomek i3 Benchtop Liquid Handler, 8-channel with Enclosure

Product No:D22660

The base model of Biomek i3 benchtop liquid handler includes 12 standard and 3 short static automated labware positioners (ALPs), an integrated gripper, and an 8-channel pipetting pod for efficient tip-based automated liquid handling.

Solicitar Orçamento

Resources + Tools
Documentos Técnicos Tips Liquid Handling Software Integrated Solutions Training
D22660_Biomek i3 Benchtop Liquid Handler, 8-channel with Enclosure

Especificações

Minimum Table Support Requirements 73.2 x 78.5 cm (28.8 x 30.9 in)
Color White
Platform Biomek i-Series
Installation Category Category II
Requisitos energéticos Base Unit: 100–240 VAC, 3 A, 50/60 Hz, Automation Controller: 100–240 VAC, 2.5 A, Monitor: 100–240 VAC, 1 A
Client PC Operating System Windows® 11
Software Biomek Software (pre-installed) , DART 2.0 (optional)
Display Arm-mounted touchscreen monitor
Material(s) Top and sides: painted aluminium , Door handle: painted steel , Door panel: acrylic with vinyl application
Weight Base instrument: 49.89 kg (110 lbs) | Fully assembled instrument with full deck: 64.41 kg (142 lbs)
Width 73.2 cm (28.8 in)
Depth 78.5 cm (30.9 in)
Height 82.6 cm (32.5 in) with door closed | 128.5 cm (50.6 in) with door open
Package Quantity 1
Humidity Restrictions 20%–80% (non-condensing) at 30°C
Deck Capacity 15 pipettable and 5 flex positions
Independent Tip Loading Yes
Pipetting Volume Range 1 - 1,000 µL
Enclosure Yes
Pipetting Heads and Pods 1 - 1,000 μL Fixed-8 Pod
Number of Grippers 1
HEPA Filtration (optional) Positive pressure or negative pressure
Additional Features
  • UV light enabled
  • Color coded status light bar
  • Wireless keyboard and mouse
  • Select tip functionality
  • On-deck integration ready
  • Free coaching methods
  • Downloadable method repository
Compatible Tip Types P20, P20 Conductive, P50, P50 Conductive, P250, P250 Wide Bore, P250 Conductive, P1000, P1000 Wide Bore, P1000 Conductive Disposable Tips
